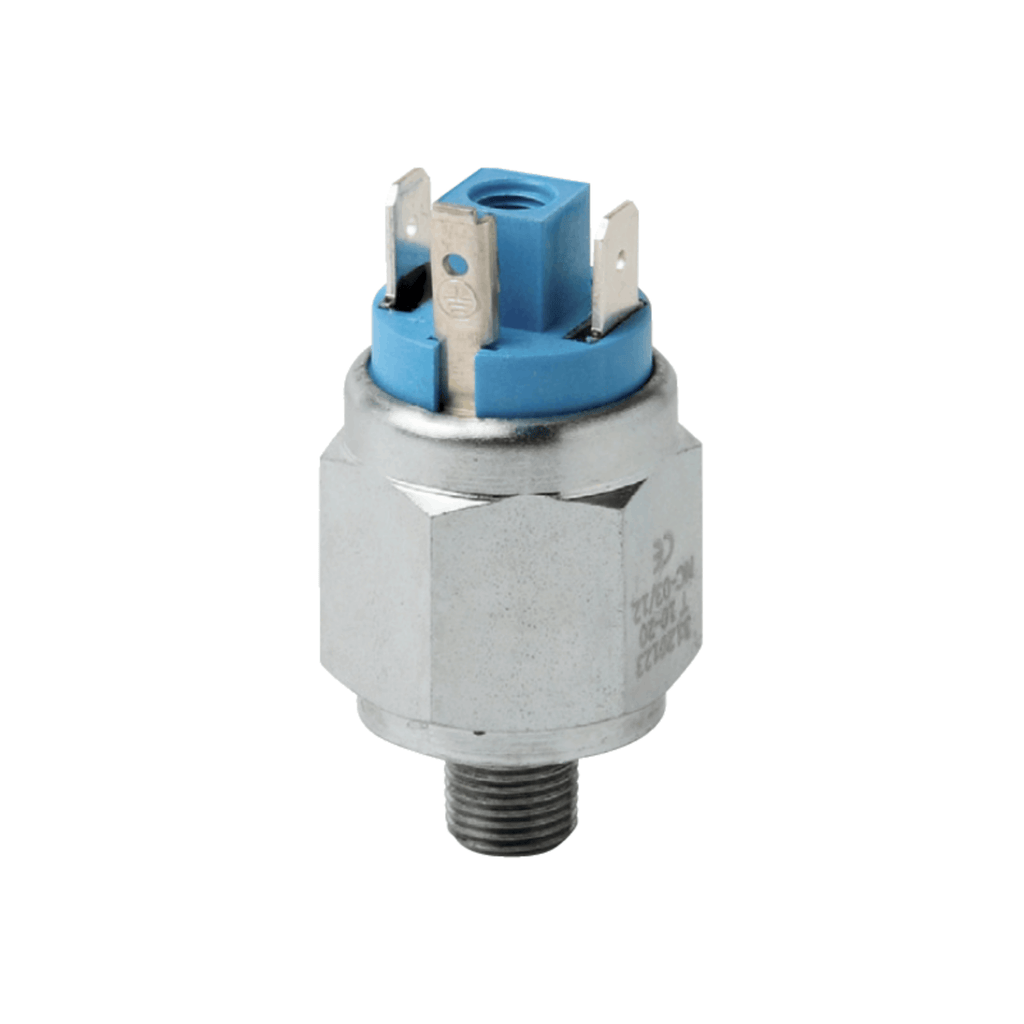

Model 31 Pressure Switch
Tell us what you need and we’ll confirm specification, availability and pricing.
The Model 31 Pressure Switch is perfect for switching pressure ranges up to 50 bar. It offers a choice of normally open or normally closed contacts (SPST), and has adjustment range options of 0.1 – 1 bar, 0.2 – 2 bar, 1 – 5 bar, 1 – 10 bar, 10 – 20 bar or 20 - 50 bar. The max working pressure is 150 bar, with an over pressure limit of 300 bar. The max switching voltage is 250 volts and the operating temperature range is -10°C to 120°C with a Viton diaphragm (other diaphragm options are available). The standard material option is zinc plated steel but brass or stainless steel are also available as options.
Downloads
 |
Technical Datasheet |
Product Catalogue
